Quick Start

Get Milvaion running locally and execute your first job in under 10 minutes.

Prerequisites

You need:

Docker Desktop (v20.10+) with Docker Compose
Web browser for the dashboard and built-in Open Api Rest Client
(Optional )curl or a REST client (Postman, Insomnia)

Verify Docker is installed:

docker --version
# Docker version 24.0.0 or higher

docker compose version
# Docker Compose version v2.20.0 or higher

Step 1: Start the Stack

Create a file named docker-compose.yml or download directly from GitHub:

curl -o docker-compose.yml https://raw.githubusercontent.com/Milvasoft/milvaion/master/build/docker-compose.yml

services:
  # PostgreSQL Database
  postgres:
    image: postgres:16-alpine
    container_name: milvaion-postgres
    environment:
      POSTGRES_DB: MilvaionDb
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: N4SQp.qW>6?xwWzg
    ports:
      - "5432:5432"
    volumes:
      - postgres_data:/var/lib/postgresql/data
    networks:
      - milvaion-network
    restart: unless-stopped
    mem_limit: 8096m
    mem_reservation: 2048m
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U postgres -d MilvaionDb"]
      interval: 5s
      timeout: 5s
      retries: 10
      start_period: 30s

  # Redis Cache & Scheduler
  redis:
    image: redis:7-alpine
    container_name: milvaion-redis
    ports:
      - "6379:6379"
    volumes:
      - redis_data:/data
    networks:
      - milvaion-network
    restart: unless-stopped
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 10s
      timeout: 3s
      retries: 5

  # RabbitMQ Message Broker
  rabbitmq:
    image: rabbitmq:3-management-alpine
    container_name: milvaion-rabbitmq
    environment:
      RABBITMQ_DEFAULT_USER: guest
      RABBITMQ_DEFAULT_PASS: guest
    ports:
      - "5672:5672"   # AMQP port
      - "15672:15672" # Management UI
    volumes:
      - rabbitmq_data:/var/lib/rabbitmq
    networks:
      - milvaion-network
    restart: unless-stopped
    healthcheck:
      test: ["CMD", "rabbitmq-diagnostics", "ping"]
      interval: 10s
      timeout: 5s
      retries: 5

  # Seq log server
  seq:
    image: datalust/seq:latest
    container_name: milvaion-seq
    environment:
      - SEQ_FIRSTRUN_ADMINPASSWORD=ChangeMe123!
      - ACCEPT_EULA=Y
    ports:
      - "5341:80" # Seq default UI port mapped to host 5341
    volumes:
      - seq_data:/data
    networks:
      - milvaion-network
    restart: unless-stopped
    labels:
      - "com.milvaion.service=seq"
      - "com.milvaion.description=Seq logging server"

  # Milvaion API (Producer/Scheduler)
  milvaion-api:
    image: milvasoft/milvaion-api:latest
    container_name: milvaion-api
    environment:
      - ASPNETCORE_ENVIRONMENT=Production
      - ASPNETCORE_URLS=http://+:5000
      - Cors__Policies__AllowAll__AllowCredentials=false
      - MILVAION_ROOT_PASSWORD=admin
      - MILVA_ENV=prod
    ports:
      - "5000:5000"  # API + React SPA (http://localhost:5000)
    depends_on:
      postgres:
        condition: service_healthy
      redis:
        condition: service_healthy
      rabbitmq:
        condition: service_healthy
    networks:
      - milvaion-network
    restart: unless-stopped
    mem_limit: 2048m
    labels:
      - "com.milvaion.service=api"
      - "com.milvaion.description=Milvaion API with embedded React UI"

  # SampleWorker (Job Executor) - Scalable
  milvaion-sample-worker:
    image: milvasoft/milvaion-sample-worker:latest
    environment:
      - Worker__WorkerId=sample-worker
    depends_on:
      rabbitmq:
        condition: service_healthy
      redis:
        condition: service_healthy
      milvaion-api:
        condition: service_started
    networks:
      - milvaion-network
    restart: unless-stopped
    mem_limit: 1024m
    # Enable scaling: docker-compose up --scale sample-worker=4 -d
    deploy:
      replicas: 1

volumes:
  postgres_data:
    driver: local
  redis_data:
    driver: local
  rabbitmq_data:
    driver: local
  seq_data:
    driver: local

networks:
  milvaion-network:
    driver: bridge

Start all services:

docker compose up -d

Wait 30-60 seconds for all services to initialize, then verify:

docker compose ps

You should see all containers running:

CONTAINER ID   IMAGE                                     COMMAND                  CREATED         STATUS                   PORTS                                                                                                         NAMES
38cc1994f7b4   milvasoft/milvaion-sample-worker:latest   "dotnet SampleWorker…"   4 minutes ago   Up 4 minutes (healthy)                                                                                                                 milvaion-quick-milvaion-sample-worker-1
30161c96e5a6   milvasoft/milvaion-api:latest             "dotnet Milvaion.Api…"   4 minutes ago   Up 4 minutes (healthy)   0.0.0.0:5000->5000/tcp                                                                                        milvaion-api
2e7cea97cc80   rabbitmq:3-management-alpine              "docker-entrypoint.s…"   4 minutes ago   Up 4 minutes (healthy)   4369/tcp, 5671/tcp, 0.0.0.0:5672->5672/tcp, 15671/tcp, 15691-15692/tcp, 25672/tcp, 0.0.0.0:15672->15672/tcp   milvaion-rabbitmq
2a3b8aa49b48   redis:7-alpine                            "docker-entrypoint.s…"   4 minutes ago   Up 4 minutes (healthy)   0.0.0.0:6379->6379/tcp                                                                                        milvaion-redis
ada407651b06   datalust/seq:latest                       "/bin/seqentry"          4 minutes ago   Up 4 minutes             443/tcp, 5341/tcp, 45341/tcp, 0.0.0.0:5341->80/tcp                                                            milvaion-seq
9e24e3a3d5d8   postgres:16-alpine                        "docker-entrypoint.s…"   4 minutes ago   Up 4 minutes (healthy)   0.0.0.0:5432->5432/tcp

Step 2: Access the Dashboard and Rest Client

Dashboard

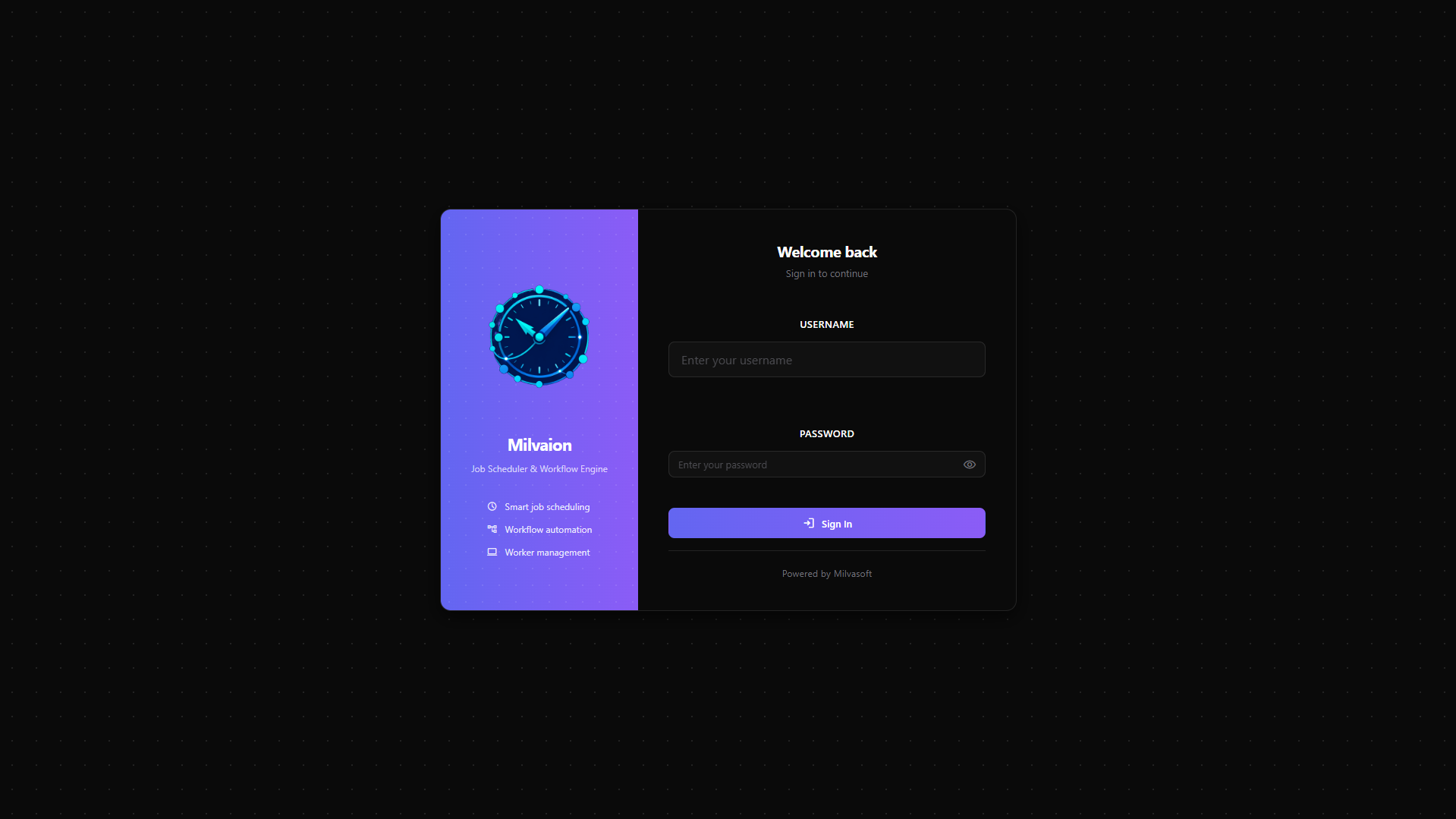

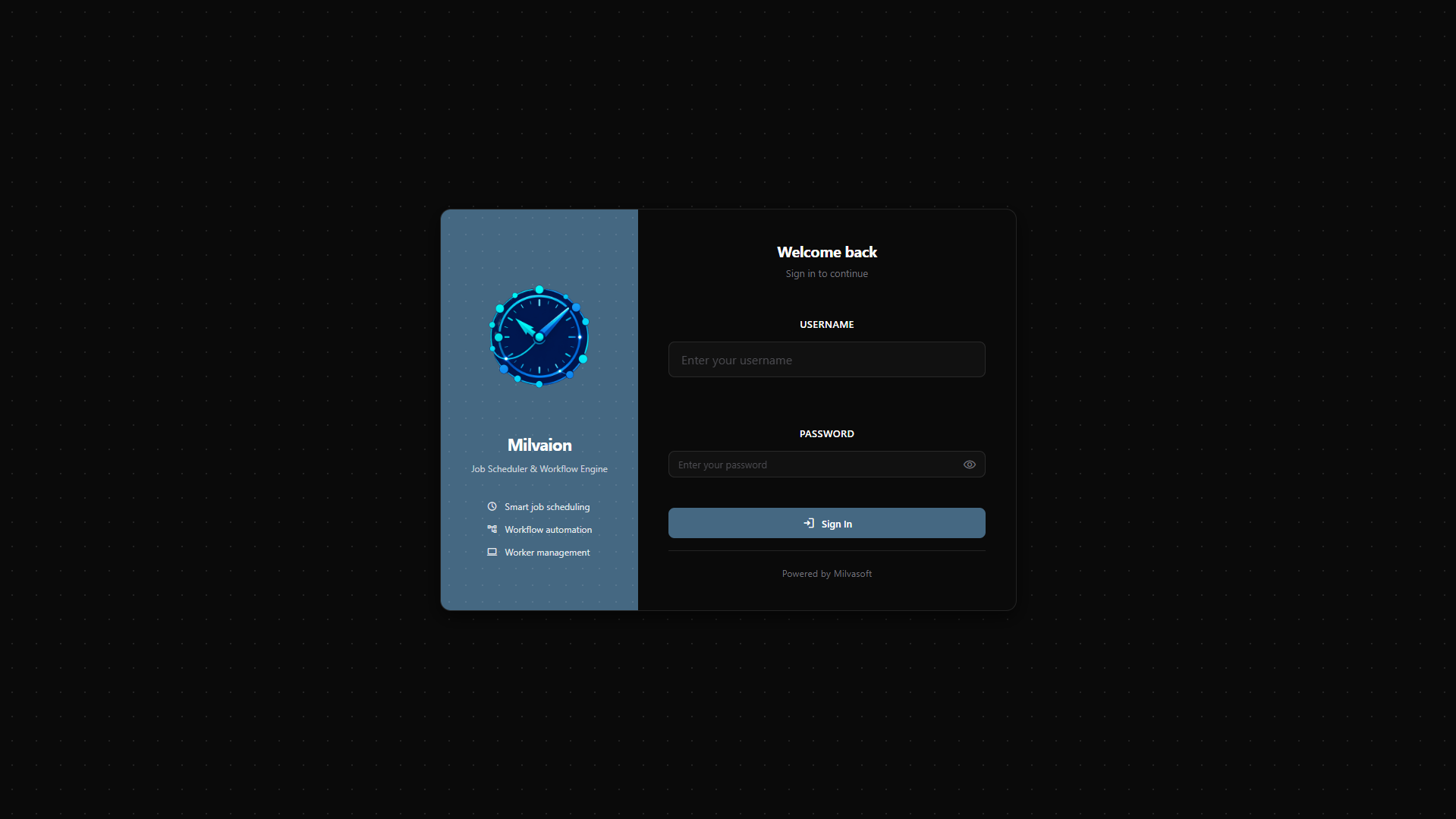

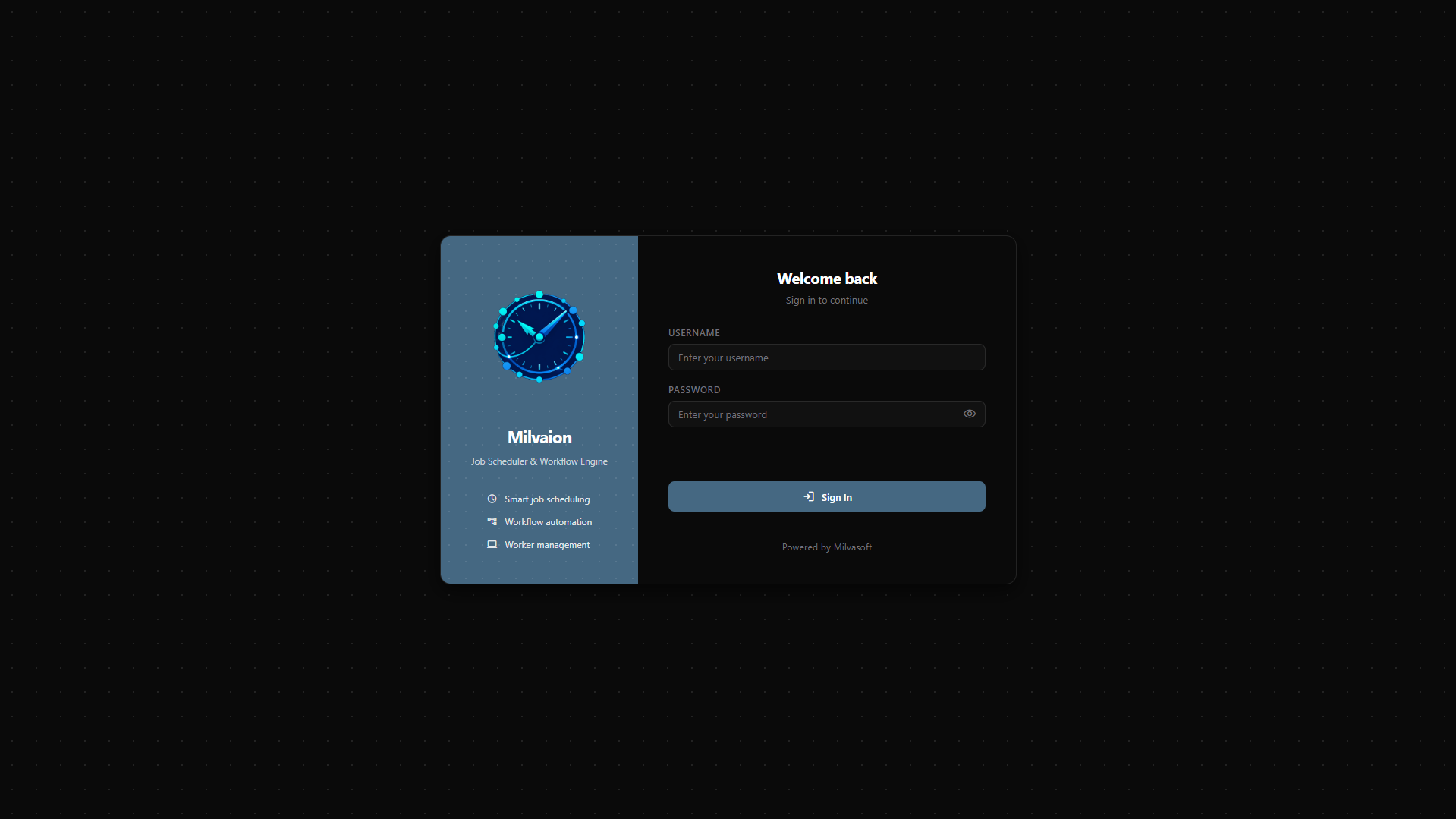

Open your browser: http://localhost:5000

You'll see the Milvaion UI. For more information, see the detailed UI documentation.

Milvaion Dashboard

Default username is rootuser. System-wide access is permitted. If you didn't set MILVAION_ROOT_PASSWORD in docker-compose, to get the initial user password:

docker logs milvaion-api 2>&1 | grep -i "Initial root user password"

Note

You can change the password via /api/v1/account/password/change endpoint.

Rest Client

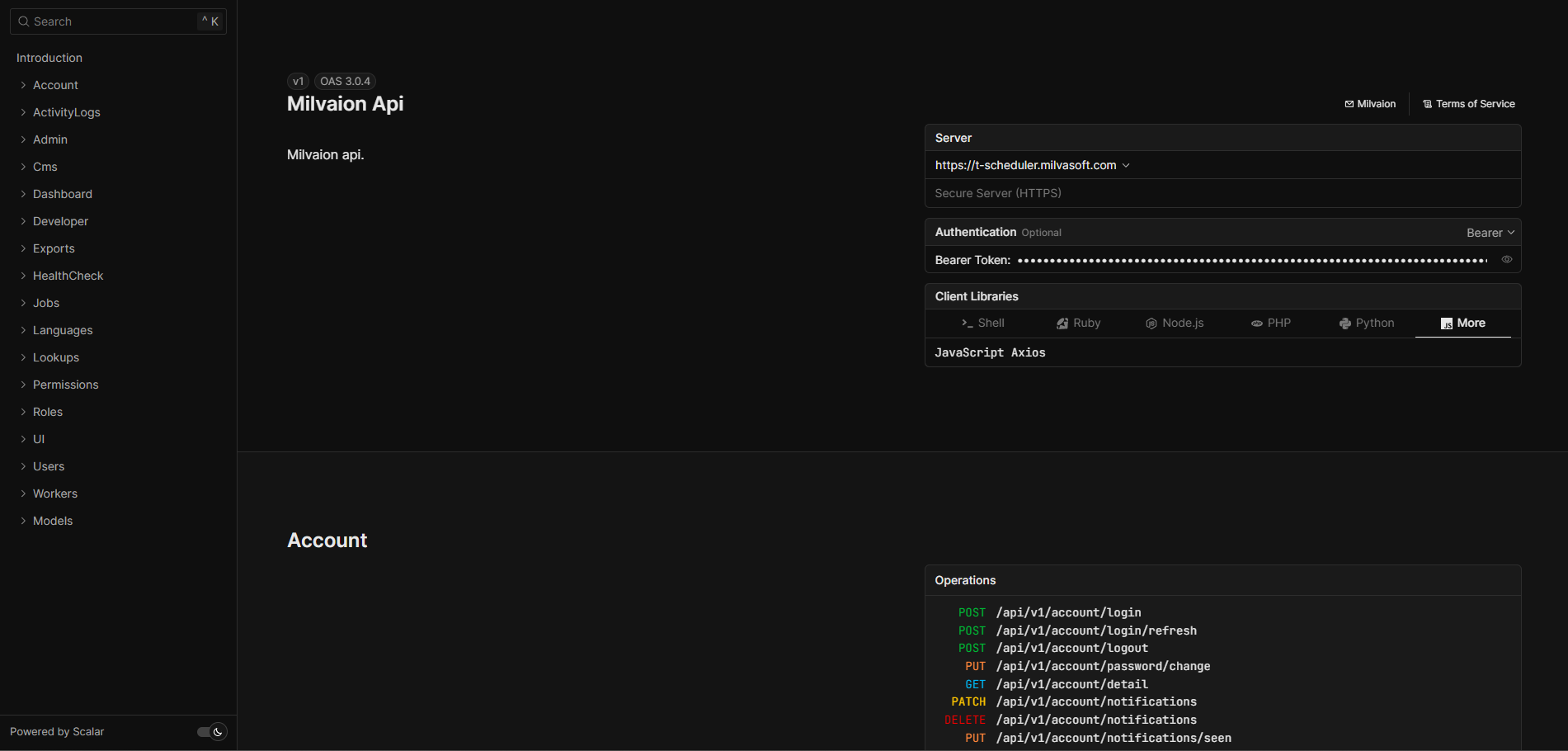

Open your browser: http://localhost:5000/api/documentation/index.html

You'll see the Milvaion rest client. A permanent token will be set up for you. Milvaion Dashboard

Without proxy, the api will serve only http. For http/https switch on rest client; Milvaion Dashboard

Step 3: Create Your First Job

Use the Dashboard UI, Rest Client or make an API call:

curl -X POST http://localhost:5000/api/v1/jobs/job \
  -H "Content-Type: application/json" \
  -H "Accept-Language: en-US" \
  -d '{
    "displayName": "My First Job",
    "workerId": "sample-worker",
    "selectedJobName": "SampleSendEmailJob",
    "description": "This is a test job!",
    "jobData": "{\n  \"to\": \"[email protected]\",\n  \"subject\": \"Test email subject\",\n  \"body\": \"Test email body.\"\n}",
    "isActive": true,
    "concurrentExecutionPolicy": 0,
    "tags": "test,first-job",
    "zombieTimeoutMinutes": null,
    "executionTimeoutSeconds": null,
    "autoDisableSettings": {
        "enabled": true,
        "threshold": null
    },
    "cronExpression": "0 * * * * *"
}'

What this does:

Field	Value	Meaning
`displayName`	"My First Job"	Human-readable name shown in dashboard
`description`	"This is a test job!"	Human-readable description shown in dashboard
`tags`	"test,first-job"	Comma seperated tags for job grouping.
`workerId`	"sample-worker"	Routes to the test worker. This must be exactly the same as your worker configuration.
`selectedJobName`	"SampleSendEmailJob"	Job class name in worker. Must match a job class in the worker
`cronExpression`	`0 * * * * *`	Schedule configuration. Run every minute
`executeAt`	"2026-01-15T15:39:00.000Z"	One time job schedule time. Send `null` for the recurring jobs. If both `cronExpression` and `executeAt` sent, `cronExpression` have priority.
`concurrentExecutionPolicy`	0 -> Skip , 1 -> Queue	Scheduling mechanism when concurrent execution happens.
`isActive`	`true`	Job is active or not. Deactivated jobs will not create executions.
`executionTimeoutSeconds`	`null`	Job-specific execution timeout in seconds. If set, worker will cancel the job after this duration and mark it as TimedOut. If null, worker's JobConsumerConfig.ExecutionTimeoutSeconds is used as fallback. Default: null (use worker config, typically 3600 seconds = 1 hour).
`zombieTimeoutMinutes`	`null`	Job-specific zombie timeout in minutes. If set, occurrences stuck in Queued status longer than this will be marked as Failed. If null, global ZombieDetector timeout (10 minutes) is used. Useful for long-running jobs that need higher timeout thresholds..
`jobData`	JSON object	Data passed to the job
`autoDisableSettings`	JSON object	Auto disable settings for consecutive failing.

You should receive:

{
    "isSuccess": true,
    "statusCode": 200,
    "messages": [
        {
            "key": "",
            "message": "Operation successful!",
            "type": 1
        }
    ],
    "data": "019c1b4b-6f4a-75fb-b094-0dec83f168f5",
    "metadatas": []
}

The data field is your new Job ID.

Step 4: Watch It Run

Option A: Dashboard (Recommended)

Go to http://localhost:5000
Login with your credentials.
Click Jobs in the sidebar
Click your job name
Wait up to 1 minute for the cron trigger
See the Execution History populate with occurrences in real-time
Click an occurrence to see real-time logs

Option B: Worker Logs

docker logs -f milvaion-sample-worker

Expected output when job runs:

info: SampleJob[0]
      🚀 SampleJob started!
info: SampleJob[0]
      Job ID: f47ac10b-58cc-4372-a567-0e02b2c3d479
info: SampleJob[0]
      Received data: {"message":"Hello from Milvaion!"}
info: SampleJob[0]
      ⏳ Processing step 1/5...
info: SampleJob[0]
      ⏳ Processing step 2/5...
...
info: SampleJob[0]
      ✅ SampleJob completed successfully!

Step 5: Trigger Manually (Optional)

Don't want to wait for cron → Trigger immediately via Dashboard or:

curl -X POST "http://localhost:5000/api/v1/jobs/job/trigger" \
  -H "Content-Type: application/json" \
  -d '{
    "jobId": "YOUR_JOB_ID",
    "reason": "Manual trigger by user"
    "force": true
  }'

Verify the System

API Health

curl http://localhost:5000/api/v1/healthcheck

RabbitMQ Management

Open http://localhost:15672 (guest/guest) to see queues and message flow.

Cleanup

Stop all services:

docker compose down

Stop and delete all data (fresh start):

docker compose down -v

Troubleshooting

"Job not executing"

Check worker is running: docker compose ps
Check worker logs: docker logs milvaion-sample-worker
Verify job is active in dashboard
Check RabbitMQ has queues: http://localhost:15672 → Queues

"API won't start"

Check PostgreSQL is healthy: docker logs milvaion-postgres
Wait for migrations: docker logs milvaion-api | grep -i migration
Port conflict → Change 5000:8080 to 5001:8080

"Worker can't connect"

Ensure worker is on same Docker network
Use container names (rabbitmq, redis) in connection strings, not localhost
Check RabbitMQ is healthy: docker logs milvaion-rabbitmq

What's Next?

Now that Milvaion is running:

Core Concepts - Understand the architecture
Your First Worker - Create a custom worker with your own jobs
Configuration Reference - All available settings
