External Scheduler Integration

Milvaion supports integration with external schedulers like Quartz.NET and Hangfire. This allows you to keep your existing scheduler while gaining Milvaion's powerful monitoring, dashboards, and alerting capabilities.

Why External Scheduler Integration?

Scenario	Solution
Existing Quartz/Hangfire Infrastructure	Keep your scheduler, add Milvaion monitoring
Complex Scheduling Needs	Use Quartz's advanced features (calendars, clustering)
Gradual Migration	Start with monitoring, migrate jobs later
Multi-Scheduler Environment	Monitor all schedulers in one dashboard
Regulatory Requirements	Use battle-tested schedulers for critical jobs

How It Works

┌─────────────────────────────────────────────────────────────────┐
│                     Your Application                            │
├─────────────────────────────────────────────────────────────────┤
│  ┌─────────────────┐    ┌─────────────────────────────────────┐ │
│  │   Quartz.NET    │───▶   Milvaion.Sdk.Worker.Quartz        │ │
│  │   Scheduler     │    │   ┌───────────────────────────────┐ │ │
│  │                 │    │   │ MilvaionJobListener           │ │ │
│  │ ┌─────────────┐ │    │   │ • JobToBeExecuted → Starting  │ │ │
│  │ │ Your Jobs   │ │    │   │ • JobWasExecuted → Completed  │ │ │
│  │ └─────────────┘ │    │   └───────────────────────────────┘ │ │
│  └─────────────────┘    └──────────────┬──────────────────────┘ │
└────────────────────────────────────────┼────────────────────────┘
                                         │ RabbitMQ
                                         ▼
┌─────────────────────────────────────────────────────────────────┐
│                     Milvaion Server                             │
├─────────────────────────────────────────────────────────────────┤
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ ExternalJobTrackerService                                 │  │
│  │ • Creates ScheduledJob records (IsExternal = true)        │  │
│  │ • Creates JobOccurrence records for each execution        │  │
│  │ • Updates status, duration, result, exception             │  │
│  └───────────────────────────────────────────────────────────┘  │
│                              ▼                                  │
│  ┌──────────────┐  ┌──────────────┐  ┌──────────────┐           │
│  │  Dashboard   │  │   Alerts     │  │   Metrics    │           │
│  │  • Job List  │  │  • Failures  │  │  • EPM       │           │
│  │  • History   │  │  • Timeouts  │  │  • Duration  │           │
│  └──────────────┘  └──────────────┘  └──────────────┘           │
└─────────────────────────────────────────────────────────────────┘

Supported Schedulers

Scheduler	SDK Package	Status
Quartz.NET	Milvasoft.Milvaion.Sdk.Worker.Quartz	✅ Available
Hangfire	Milvasoft.Milvaion.Sdk.Worker.Hangfire	🚧 Coming Soon

---

Dashboard Behavior for External Jobs

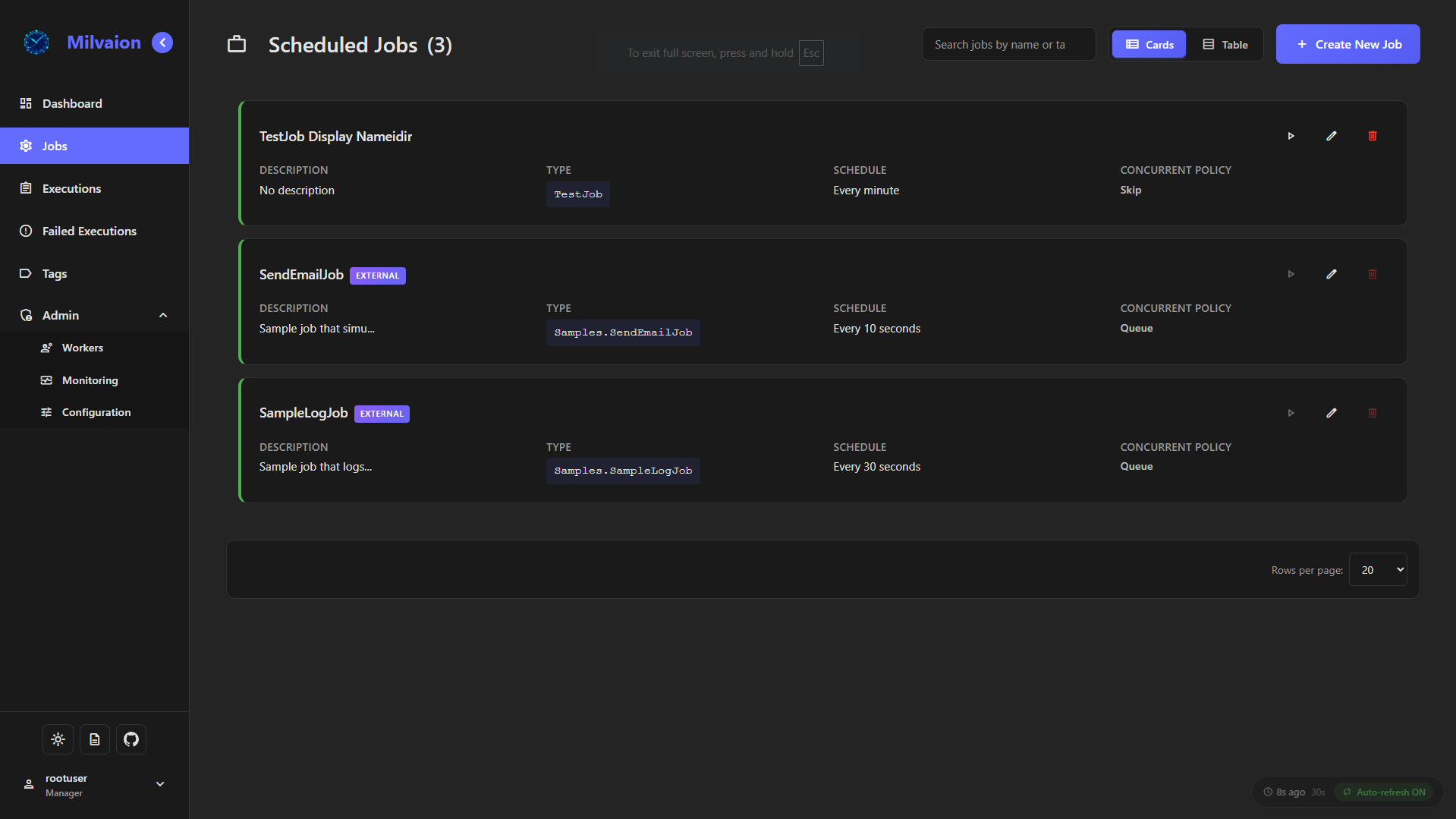

External jobs appear in the Milvaion dashboard with special indicators and restricted actions:

Feature	Internal Jobs	External Jobs
Trigger Button	✅ Enabled	🔒 Disabled
Delete Button	✅ Enabled	🔒 Disabled
Edit Button	✅ Full edit	⚠️ Limited edit

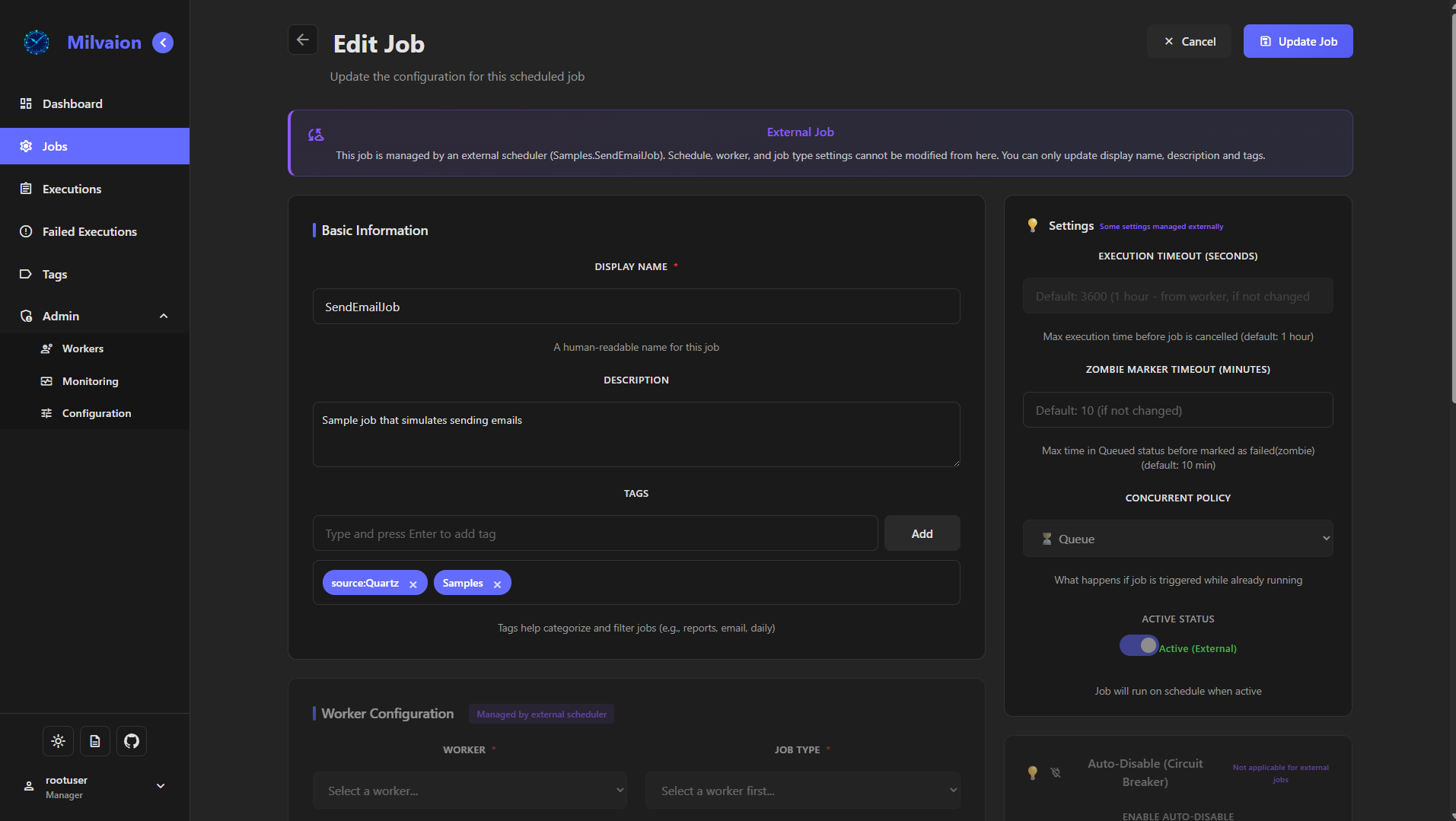

External Job Edit

When editing external jobs, the following fields are disabled:

Field	Editable	Reason
Display Name	✅ Yes	Milvaion-only setting
Description	✅ Yes	Milvaion-only setting
Tags	✅ Yes	Milvaion-only setting
Zombie Timeout	✅ Yes	Milvaion zombie detection
Worker	🔒 No	Managed by Quartz
Job Type	🔒 No	Managed by Quartz
Schedule (Cron)	🔒 No	Managed by Quartz
Job Data	🔒 No	Managed by Quartz
Execution Timeout	🔒 No	Managed by Quartz
Concurrent Policy	🔒 No	Managed by Quartz
Active Status	🔒 No	Managed by Quartz
Auto-Disable	🔒 No	Not applicable

Occurrence Detail View

External job occurrences show the external job ID:

EXTERNAL JOB: Samples.SendEmailJob

The Cancel button is disabled for external job occurrences since Milvaion cannot cancel jobs running in external job scheduler.

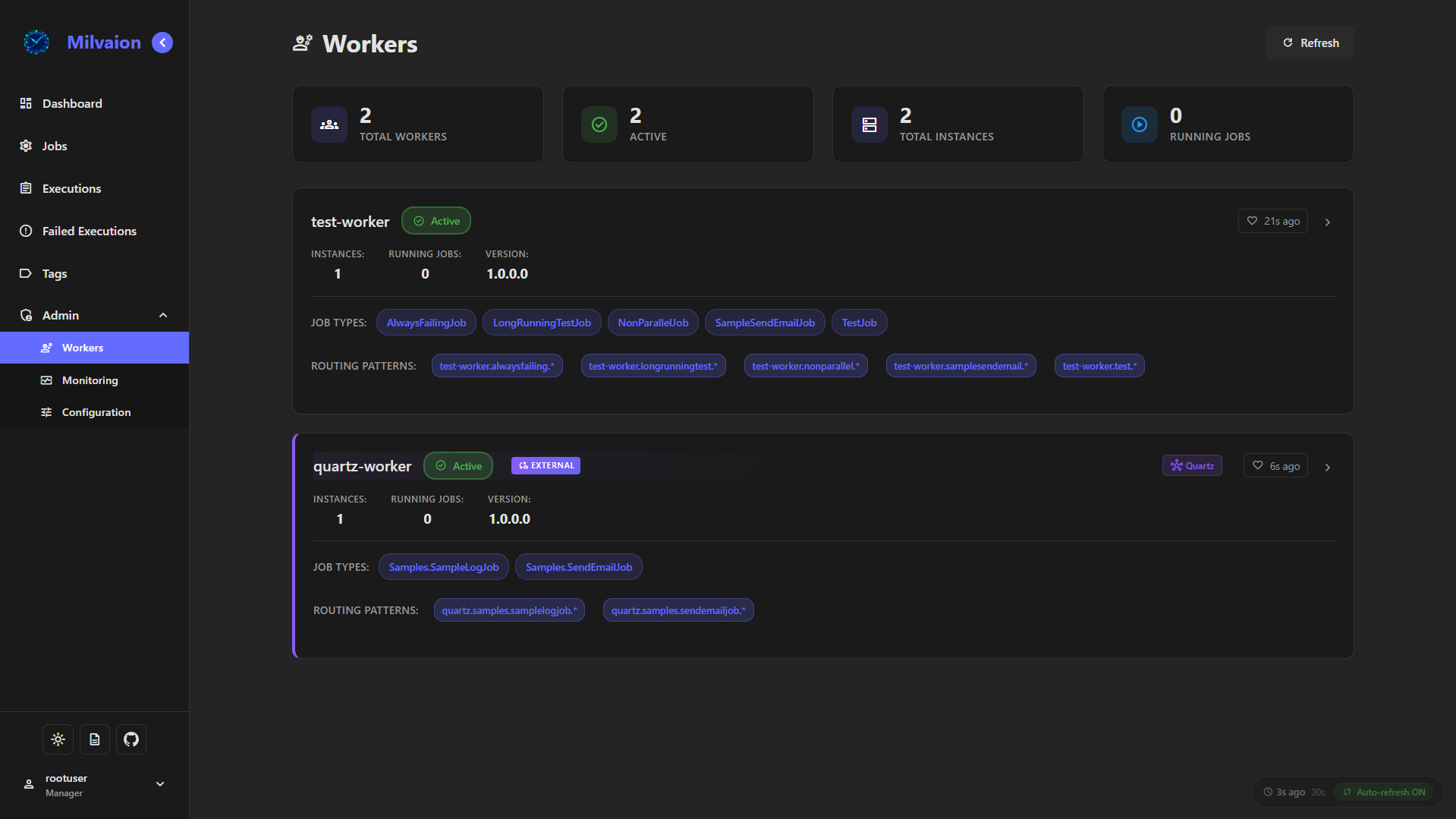

Worker List

---

Configuration Reference

Worker Configuration

Same as milvaion worker except ExternalScheduler config;

Property	Type	Required	Default	Description
WorkerId	string	✅	-	Unique identifier for this worker
MaxParallelJobs	int	-	10	Maximum concurrent job executions
RabbitMQ	object	✅	-	RabbitMQ connection settings
Redis	object	✅	-	Redis connection settings
Heartbeat	object	-	-	Heartbeat configuration
ExternalScheduler	object	-	-	External scheduler settings

ExternalScheduler Configuration

Property	Type	Required	Default	Description
Source	string	✅	-	Scheduler identifier (e.g., "Quartz", "Hangfire")

---

Metrics and Monitoring

External jobs contribute to all Milvaion metrics:

Metric	External Jobs Included
Executions Per Minute (EPM)	✅ Yes
Average Duration	✅ Yes
Total Occurrences	✅ Yes
Status Counters (Running/Completed/Failed)	✅ Yes
Job Success Rate	✅ Yes

Quartz.NET Integration

Quick Start

1. Add NuGet Package

dotnet add package Milvasoft.Milvaion.Sdk.Worker.Quartz

2. Configure Services

using Milvasoft.Milvaion.Sdk.Worker.Quartz.Extensions;
using Quartz;

var builder = Host.CreateApplicationBuilder(args);

// Add Milvaion Quartz integration
// This registers core worker services AND Quartz listeners
builder.Services.AddMilvaionQuartzIntegration(builder.Configuration);

// Configure Quartz with your jobs
builder.Services.AddQuartz(q =>
{
    // Enable Milvaion listeners for job monitoring
    q.UseMilvaion(builder.Services);

    // Register your jobs
    var myJobKey = new JobKey("MyJob", "MyGroup");
    q.AddJob<MyJob>(opts => opts
        .WithIdentity(myJobKey)
        .WithDescription("My scheduled job"));

    q.AddTrigger(opts => opts
        .ForJob(myJobKey)
        .WithIdentity("MyJob-Trigger")
        .WithCronSchedule("0 0 * * * ?") // Every hour
        .WithDescription("Runs MyJob every hour"));
});

// Add Quartz hosted service
builder.Services.AddQuartzHostedService(q => q.WaitForJobsToComplete = true);

await builder.Build().RunAsync();

3. Configure appsettings.json

{
  "Worker": {
    "WorkerId": "quartz-worker",
    "MaxParallelJobs": 128,
    "RabbitMQ": {
      "Host": "rabbitmq",
      "Port": 5672,
      "Username": "guest",
      "Password": "guest",
      "VirtualHost": "/"
    },
    "Redis": {
      "ConnectionString": "redis:6379"
    },
    "Heartbeat": {
      "Enabled": true,
      "IntervalSeconds": 5
    },
    "ExternalScheduler": {
      "Source": "Quartz"
    }
  }
}

Implementing Jobs with Milvaion Integration

Your Quartz jobs can publish logs to Milvaion for real-time monitoring:

using Microsoft.Extensions.Logging;
using Milvasoft.Milvaion.Sdk.Worker.RabbitMQ;
using Quartz;

public class MyJob(ILogger<MyJob> logger, ILogPublisher logPublisher) : IJob
{
    public async Task Execute(IJobExecutionContext context)
    {
        var dataMap = context.MergedJobDataMap;

        // Get Milvaion tracking info (set by MilvaionJobListener)
        var correlationId = Guid.Parse(dataMap.GetString("Milvaion_CorrelationId") ?? Guid.Empty.ToString());
        var workerId = dataMap.GetString("Milvaion_WorkerId") ?? "quartz-worker";

        // Publish log to Milvaion
        await logPublisher.PublishLogAsync(new JobOccurrenceLogMessage
        {
            CorrelationId = correlationId,
            WorkerId = workerId,
            Level = LogLevel.Information.ToString(),
            Message = "Starting job execution...",
            Timestamp = DateTime.UtcNow
        });

        // Your job logic here
        await DoWorkAsync();

        // Publish completion log
        await logPublisher.PublishLogAsync(new JobOccurrenceLogMessage
        {
            CorrelationId = correlationId,
            WorkerId = workerId,
            Level = LogLevel.Information.ToString(),
            Message = "Job completed successfully",
            Timestamp = DateTime.UtcNow,
            Data = new Dictionary<string, object> { ["result"] = "success" }
        });

        // Flush logs before job completes
        await logPublisher.FlushAsync();

        // Set result (optional)
        context.Result = JsonSerializer.Serialize(new { Status = "Completed" });
    }
}

Using the Pre-built Quartz Worker Docker Image

For quick testing deployments, use the pre-built Quartz worker image:

Docker Run

docker run -d \
  --name quartz-worker \
  -e Worker__RabbitMQ__Host=rabbitmq \
  -e Worker__RabbitMQ__Port=5672 \
  -e Worker__RabbitMQ__Username=guest \
  -e Worker__RabbitMQ__Password=guest \
  -e Worker__Redis__ConnectionString=redis:6379 \
  milvasoft/milvaion-sample-quartz-worker:latest

Docker Compose

services:
  quartz-worker:
    image: milvasoft/milvaion-sample-quartz-worker:latest
    container_name: quartz-worker
    restart: unless-stopped
    environment:
      - Worker__WorkerId=quartz-worker-1
      - Worker__RabbitMQ__Host=rabbitmq
      - Worker__RabbitMQ__Port=5672
      - Worker__RabbitMQ__Username=guest
      - Worker__RabbitMQ__Password=guest
      - Worker__Redis__ConnectionString=redis:6379
      - Worker__ExternalScheduler__Source=Quartz
    networks:
      - milvaion-network
    depends_on:
      - rabbitmq
      - redis

  # Add more workers for scaling
  quartz-worker-2:
    image: milvasoft/milvaion-sample-quartz-worker:latest
    container_name: quartz-worker-2
    restart: unless-stopped
    environment:
      - Worker__WorkerId=quartz-worker-2
      - Worker__RabbitMQ__Host=rabbitmq
      # ... same config

Kubernetes Deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: quartz-worker
spec:
  replicas: 3
  selector:
    matchLabels:
      app: quartz-worker
  template:
    metadata:
      labels:
        app: quartz-worker
    spec:
      containers:
        - name: quartz-worker
          image: milvasoft/milvaion-quartz-worker:latest
          env:
            - name: Worker__WorkerId
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: Worker__RabbitMQ__Host
              valueFrom:
                configMapKeyRef:
                  name: milvaion-config
                  key: rabbitmq-host
            - name: Worker__RabbitMQ__Username
              valueFrom:
                secretKeyRef:
                  name: rabbitmq-credentials
                  key: username
            - name: Worker__RabbitMQ__Password
              valueFrom:
                secretKeyRef:
                  name: rabbitmq-credentials
                  key: password
            - name: Worker__Redis__ConnectionString
              valueFrom:
                configMapKeyRef:
                  name: milvaion-config
                  key: redis-connection
          resources:
            requests:
              memory: "256Mi"
              cpu: "250m"
            limits:
              memory: "512Mi"
              cpu: "500m"

How Quartz Jobs Are Tracked

Job Registration

When Quartz starts, MilvaionSchedulerListener registers all jobs:

Quartz → ExternalJobRegistrationMessage → RabbitMQ → ExternalJobTrackerService
                                                              ↓
                                                    Creates ScheduledJob
                                                    (IsExternal = true)

Job Execution

When a job runs, MilvaionJobListener tracks the execution:

JobToBeExecuted:
Quartz → ExternalJobOccurrenceMessage (Starting) → RabbitMQ → ExternalJobTrackerService
                                                                      ↓
                                                            Creates JobOccurrence
                                                            (Status = Running)

JobWasExecuted:
Quartz → ExternalJobOccurrenceMessage (Completed/Failed) → RabbitMQ → ExternalJobTrackerService
                                                                              ↓
                                                                    Updates JobOccurrence
                                                                    (Status, Duration, Result)

Logs

Jobs can publish logs via ILogPublisher:

Job → JobOccurrenceLogMessage → RabbitMQ → LogConsumerService
                                                   ↓
                                         Adds to JobOccurrence.Logs
                                         Publishes via SignalR

---

Hangfire Integration

Quick Start

1. Add NuGet Package

dotnet add package Milvasoft.Milvaion.Sdk.Worker.Hangfire

2. Configure Services

using Hangfire;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using Milvasoft.Milvaion.Sdk.Worker.Hangfire.Extensions;

var builder = Host.CreateApplicationBuilder(args);

// Add Milvaion Hangfire integration
// This registers core worker services AND Hangfire filters
builder.Services.AddMilvaionHangfireIntegration(builder.Configuration);

// Register your job classes
builder.Services.AddTransient<MyEmailJob>();
builder.Services.AddTransient<MyReportJob>();

// Configure Hangfire with your storage
builder.Services.AddHangfire((sp, config) =>
{
    // Use your preferred storage (PostgreSQL, SQL Server, Redis, etc.)
    config.UsePostgreSqlStorage(connectionString);
    // Or for testing: config.UseInMemoryStorage();

    // Enable Milvaion filter for job monitoring
    config.UseMilvaion(sp);
});

// Add Hangfire server
builder.Services.AddHangfireServer(options =>
{
    options.WorkerCount = 4;
    options.Queues = ["default", "critical"];
});

var host = builder.Build();

// Configure recurring jobs after host is built
using (var scope = host.Services.CreateScope())
{
    var recurringJobManager = scope.ServiceProvider.GetRequiredService<IRecurringJobManager>();

    // Register recurring jobs
    recurringJobManager.AddOrUpdate<MyEmailJob>(
        "daily-email-job",
        job => job.SendDailyDigest(CancellationToken.None),
        Cron.Daily);

    recurringJobManager.AddOrUpdate<MyReportJob>(
        "hourly-report-job",
        job => job.GenerateReport("sales", CancellationToken.None),
        Cron.Hourly);
}

await host.RunAsync();

3. Configure appsettings.json

{
  "Worker": {
    "WorkerId": "hangfire-worker",
    "MaxParallelJobs": 128,
    "RabbitMQ": {
      "Host": "rabbitmq",
      "Port": 5672,
      "Username": "guest",
      "Password": "guest",
      "VirtualHost": "/"
    },
    "Redis": {
      "ConnectionString": "redis:6379"
    },
    "Heartbeat": {
      "Enabled": true,
      "IntervalSeconds": 5
    },
    "ExternalScheduler": {
      "SourceName": "Hangfire"
    }
  }
}

Implementing Jobs

Hangfire jobs are simple classes with methods:

using Microsoft.Extensions.Logging;

public class MyEmailJob(ILogger<MyEmailJob> logger)
{
    private readonly ILogger<MyEmailJob> _logger = logger;

    public async Task SendDailyDigest(CancellationToken cancellationToken)
    {
        _logger.LogInformation("📧 Starting daily email digest...");

        // Your job logic here
        var recipients = await GetRecipientsAsync();

        foreach (var recipient in recipients)
        {
            _logger.LogInformation("Sending email to {Recipient}", recipient);
            await SendEmailAsync(recipient, cancellationToken);
        }

        _logger.LogInformation("✅ Daily email digest completed!");
    }
}

public class MyReportJob(ILogger<MyReportJob> logger)
{
    private readonly ILogger<MyReportJob> _logger = logger;

    public async Task GenerateReport(string reportType, CancellationToken cancellationToken)
    {
        _logger.LogInformation("📊 Generating {ReportType} report...", reportType);

        // Simulate report generation
        for (int progress = 0; progress <= 100; progress += 20)
        {
            _logger.LogInformation("Report progress: {Progress}%", progress);
            await Task.Delay(1000, cancellationToken);
        }

        _logger.LogInformation("✅ Report generated successfully!");
    }
}

How Hangfire Jobs Are Tracked

Job Registration

When a Hangfire job is created, MilvaionJobFilter.OnCreating() registers it:

Hangfire → OnCreating() ? ExternalJobRegistry
                              ↓
                    Stores job config locally
                              ↓
HangfireWorkerStartupService ? WorkerListenerPublisher ? RabbitMQ ? Milvaion Server
                                                                         ↓
                                                               Creates ScheduledJob
                                                               (IsExternal = true)

Job Execution

When a job runs, MilvaionJobFilter tracks the execution:

OnPerforming():
Hangfire → MilvaionJobFilter → ExternalJobOccurrenceMessage (Starting) → RabbitMQ
                 ↓                                                          ↓
    • Generate CorrelationId                                    ExternalJobTrackerService
    • Store in JobParameters                                             ↓
                                                               Creates JobOccurrence
                                                               (Status = Running)

OnPerformed():
Hangfire → MilvaionJobFilter → ExternalJobOccurrenceMessage (Completed/Failed) → RabbitMQ
                 ↓                                                                    ↓
    • Get CorrelationId from JobParameters                           ExternalJobTrackerService
    • Calculate duration from StartTime                                       ↓
    • Capture exception if failed                              Updates JobOccurrence
                                                               (Status, Duration, Result, Exception)

Logs

Jobs can publish logs via ILogPublisher:

Job → JobOccurrenceLogMessage → RabbitMQ → LogConsumerService
                                                   ↓
                                         Adds to JobOccurrence.Logs
                                         Publishes via SignalR

Job Cancellation

When a job is deleted/cancelled, MilvaionJobFilter.OnStateElection() handles it:

OnStateElection(DeletedState):
Hangfire → MilvaionJobFilter → ExternalJobOccurrenceMessage (Cancelled) → RabbitMQ
                                                                              →
                                                               ExternalJobTrackerService
                                                                              →
                                                               Updates JobOccurrence
                                                               (Status = Cancelled)

---

Using the Pre-built Hangfire Worker Docker Image

For quick testing deployments, use the pre-built Hangfire worker image:

Docker Run

docker run -d \
  --name hangfire-worker \
  -e Worker__RabbitMQ__Host=rabbitmq \
  -e Worker__RabbitMQ__Port=5672 \
  -e Worker__RabbitMQ__Username=guest \
  -e Worker__RabbitMQ__Password=guest \
  -e Worker__Redis__ConnectionString=redis:6379 \
  milvasoft/milvaion-sample-hangfire-worker:latest

Docker Compose

services:
  hangfire-worker:
    image: milvasoft/milvaion-sample-hangfire-worker:latest
    container_name: hangfire-worker
    restart: unless-stopped
    environment:
      - Worker__WorkerId=hangfire-worker-1
      - Worker__RabbitMQ__Host=rabbitmq
      - Worker__RabbitMQ__Port=5672
      - Worker__RabbitMQ__Username=guest
      - Worker__RabbitMQ__Password=guest
      - Worker__Redis__ConnectionString=redis:6379
      - Worker__ExternalScheduler__SourceName=Hangfire
    networks:
      - milvaion-network
    depends_on:
      - rabbitmq
      - redis

---

Troubleshooting

Jobs Not Appearing in Dashboard

1. Check RabbitMQ Connection

   docker logs quartz-worker | grep -i "connected to rabbitmq"

2. Check ExternalJobTrackerService

   docker logs milvaion-api | grep -i "external"

3. Verify Configuration

   • Ensure ExternalScheduler.Source is set
   • Check RabbitMQ credentials

Occurrences Not Updating

1. Check Correlation ID

   • Ensure Milvaion_CorrelationId is in JobDataMap

2. Check Listener Registration

   • Verify q.UseMilvaion(builder.Services) is called

Logs Not Appearing

1. Check LogPublisher

   • Ensure ILogPublisher is injected
   • Call FlushAsync() before job completes

2. Check CorrelationId

   • Logs require valid CorrelationId
