Monitoring & Observability

This guide covers monitoring Milvaion in production, including health checks, metrics, logging, and alerting.

Health Checks

API Health Endpoints

Endpoint	Purpose	Use For
`/health/live`	Is the process running?	Kubernetes liveness probe
`/health/ready`	Are dependencies healthy?	Kubernetes readiness probe
`/health`	Full health with details	Debugging, dashboards

Liveness Check

curl http://localhost:5000/api/v1/healthcheck/live

Response:

{
  "status": "Healthy",
  "timestamp": "2026-01-14T17:55:12.5466734Z",
  "uptime": "16.05:34:46.9359664"
}

Readiness Check

curl http://localhost:5000/api/v1/healthcheck/ready

Response:

{
  "status": "Healthy",
  "duration": "00:00:00.0015505",
  "timestamp": "2026-01-14T17:55:39.7914455Z",
  "checks": [
    {
      "name": "PostgreSQL",
      "status": "Healthy",
      "description": "PostgreSQL database connection is healthy",
      "duration": "00:00:00.0014398",
      "tags": [
        "database",
        "sql"
      ],
      "data": {
        "DatabaseName": "MilvaionDb",
        "ConnectionStatus": "Connected",
        "ProviderName": "Npgsql.EntityFrameworkCore.PostgreSQL"
      }
    },
    {
      "name": "Redis",
      "status": "Healthy",
      "description": "Redis connection is healthy",
      "duration": "00:00:00.0004801",
      "tags": [
        "redis",
        "cache"
      ],
      "data": {
        "ConnectionStatus": "Connected",
        "Database": "0"
      }
    },
    {
      "name": "RabbitMQ",
      "status": "Healthy",
      "description": "RabbitMQ connection is healthy",
      "duration": "00:00:00.0000037",
      "tags": [
        "rabbitmq",
        "messaging"
      ],
      "data": {
        "ConnectionStatus": "Connected",
        "Host": "rabbitmq",
        "Port": "5672",
        "IsOpen": "True"
      }
    }
  ]
}

Kubernetes Probes

spec:
  containers:
    - name: api
      livenessProbe:
        httpGet:
          path: /api/v1/healthcheck/live
          port: 8080
        initialDelaySeconds: 30
        periodSeconds: 10
        failureThreshold: 3
      readinessProbe:
        httpGet:
          path: /api/v1/healthcheck/ready
          port: 8080
        initialDelaySeconds: 10
        periodSeconds: 5
        failureThreshold: 3

Worker Health

Workers support two health check approaches: file-based (for Console Workers) and HTTP endpoint-based (for API Workers).

Configuration

Enable health checks in appsettings.json:

{
  "Worker": {
    "HealthCheck": {
      "Enabled": true,
      "LiveFilePath": "/tmp/live", // Only for file health check. (for console workers)
      "ReadyFilePath": "/tmp/ready", // Only for file health check. (for console workers)
      "IntervalSeconds": 30
    }
  }
}

Setting	Default	Description
`Enabled`	`false`	Enable/disable health checks
`LiveFilePath`	`/tmp/live`	File path for liveness probe
`ReadyFilePath`	`/tmp/ready`	File path for readiness probe
`IntervalSeconds`	`30`	Health check interval

Option 1: Console Worker (File-Based)

For workers without HTTP endpoints, use AddFileHealthCheck():

using Microsoft.Extensions.Hosting;
using Milvasoft.Milvaion.Sdk.Worker;

var builder = Host.CreateApplicationBuilder(args);

// Register Worker SDK
builder.Services.AddMilvaionWorkerWithJobs(builder.Configuration);

// Add file-based health checks (Redis + RabbitMQ)
builder.Services.AddFileHealthCheck(builder.Configuration);

var host = builder.Build();
await host.RunAsync();

Kubernetes probes:

spec:
  containers:
    - name: worker
      livenessProbe:
        exec:
          command: ["test", "-f", "/tmp/live"]
        initialDelaySeconds: 30
        periodSeconds: 30
        failureThreshold: 3
      readinessProbe:
        exec:
          command: ["test", "-f", "/tmp/ready"]
        initialDelaySeconds: 10
        periodSeconds: 10
        failureThreshold: 3

Docker Compose healthcheck:

worker:
  healthcheck:
    test: ["CMD", "test", "-f", "/tmp/live"]
    interval: 30s
    timeout: 5s
    retries: 3
    start_period: 30s

Option 2: API Worker (HTTP Endpoints)

For workers with HTTP endpoints, use AddHealthCheckEndpoints() and UseHealthCheckEndpoints():

using Milvasoft.Milvaion.Sdk.Worker;
using Milvasoft.Milvaion.Sdk.Worker.HealthChecks;

var builder = WebApplication.CreateBuilder(args);

// Add health checks (Redis + RabbitMQ)
builder.Services.AddHealthChecks()
                .AddCheck<RedisHealthCheck>("Redis", tags: ["redis", "cache"])
                .AddCheck<RabbitMQHealthCheck>("RabbitMQ", tags: ["rabbitmq", "messaging"]);

// Register Worker SDK
builder.Services.AddMilvaionWorkerWithJobs(builder.Configuration);

// Register health check endpoint services
builder.Services.AddHealthCheckEndpoints(builder.Configuration);

var app = builder.Build();

// Map health check endpoints
app.UseHealthCheckEndpoints(builder.Configuration);

await app.RunAsync();

Available endpoints:

Endpoint	Purpose	Response
`/health`	Simple check	`"Ok"`
`/health/live`	Liveness probe	`{ status, timestamp, uptime }`
`/health/ready`	Readiness probe	`{ status, duration, checks[] }`
`/health/startup`	Startup probe	`{ status, timestamp, uptime }`

Kubernetes probes:

spec:
  containers:
    - name: api-worker
      livenessProbe:
        httpGet:
          path: /health/live
          port: 8080
        initialDelaySeconds: 30
        periodSeconds: 10
        failureThreshold: 3
      readinessProbe:
        httpGet:
          path: /health/ready
          port: 8080
        initialDelaySeconds: 10
        periodSeconds: 5
        failureThreshold: 3
      startupProbe:
        httpGet:
          path: /health/startup
          port: 8080
        initialDelaySeconds: 5
        periodSeconds: 5
        failureThreshold: 30

Health Check Behavior

The SDK includes built-in health checks for:

Check	What it Verifies
Redis	Connection status via `PING` command
RabbitMQ	Connection status via `IConnectionMonitor`

File-based health check logic:

Live file exists: Worker process is running and not completely unhealthy
Ready file exists: All health checks (Redis, RabbitMQ) are healthy
Files are deleted on graceful shutdown
Files are updated every IntervalSeconds

Dashboard Metrics

Built-in Statistics

Access via Dashboard home or API:

curl http://localhost:5000/api/v1/dashboard

{
  "isSuccess": true,
  "statusCode": 200,
  "messages": [
    {
      "key": "",
      "message": "Operation successful!",
      "type": 1
    }
  ],
  "data": {
    "totalExecutions": 3546,
    "queuedJobs": 0,
    "completedJobs": 3513,
    "failedOccurrences": 32,
    "cancelledJobs": 1,
    "timedOutJobs": 0,
    "runningJobs": 0,
    "averageDuration": 2509.362653003131,
    "successRate": 99.06937394247038,
    "totalWorkers": 1,
    "totalWorkerInstances": 1,
    "workerCurrentJobs": 0,
    "workerMaxCapacity": 128,
    "workerUtilization": 0,
    "executionsPerMinute": 10,
    "executionsPerSecond": 0, // It means lower than 1
    "peakExecutionsPerMinute": 10
  },
  "metadatas": []
}

Worker Status

curl http://localhost:5000/api/v1/workers

[
  {
  "isSuccess": true,
  "statusCode": 200,
  "messages": [],
  "data": [
    {
      "workerId": "sample-worker",
      "displayName": "sample-worker (sample-worker-172a5243)",
      "routingPatterns": {
        "AlwaysFailingJob": "alwaysfailing.*",
        "LongRunningTestJob": "longrunningtest.*",
        "NonParallelJob": "nonparallel.*",
        "SendEmailJob": "sendemail.*",
        "TestJob": "test.*"
      },
      "jobNames": [
        "AlwaysFailingJob",
        "LongRunningTestJob",
        "NonParallelJob",
        "SendEmailJob",
        "TestJob"
      ],
      "currentJobs": 0,
      "status": "Active",
      "lastHeartbeat": "2026-01-14T18:04:52.0539333+00:00",
      "registeredAt": "2026-01-14T18:01:27.1426831+00:00",
      "version": "1.0.0.0",
      "metadata": "{\"ProcessorCount\":16,\"OSVersion\":\"Unix 6.6.87.1\",\"RuntimeVersion\":\"10.0.1\",\"JobConfigs\":[{\"JobType\":\"AlwaysFailingJob\",\"ConsumerId\":\"alwaysfailing-consumer\",\"MaxParallelJobs\":8,\"ExecutionTimeoutSeconds\":30},{\"JobType\":\"LongRunningTestJob\",\"ConsumerId\":\"longrunning-consumer\",\"MaxParallelJobs\":8,\"ExecutionTimeoutSeconds\":10},{\"JobType\":\"NonParallelJob\",\"ConsumerId\":\"nonparallel-consumer\",\"MaxParallelJobs\":1,\"ExecutionTimeoutSeconds\":30},{\"JobType\":\"SendEmailJob\",\"ConsumerId\":\"email-consumer\",\"MaxParallelJobs\":16,\"ExecutionTimeoutSeconds\":600},{\"JobType\":\"TestJob\",\"ConsumerId\":\"test-consumer\",\"MaxParallelJobs\":32,\"ExecutionTimeoutSeconds\":120}]}",
      "instances": [
        {
          "instanceId": "sample-worker-172a5243",
          "hostName": "1fc7768572fd",
          "ipAddress": "172.18.0.6",
          "currentJobs": 0,
          "status": 0,
          "lastHeartbeat": "2026-01-14T18:04:52.0539333+00:00",
          "registeredAt": "2026-01-14T18:01:27.1454977+00:00"
        }
      ]
    }
  ],
  "metadatas": []
}
]

Logging

Milvaion uses Serilog for structured logging. By default, logs are written to the console. You can optionally enable Seq integration for centralized log management.

Default Behavior

Console output: All logs are written to console by default
Structured format: Logs include contextual properties for filtering
Automatic enrichment: Each log entry includes AppName and Environment properties
Path filtering: Health check and metrics endpoints are excluded from logs

Seq Integration (Optional)

To send logs to Seq, enable it in appsettings.json:

{
  "MilvaionConfig": {
    "Logging": {
      "Seq": {
        "Enabled": true,
        "Uri": "http://seq:5341"
      }
    }
  }
}

Setting	Default	Description
`Enabled`	`false`	Enable/disable Seq logging
`Uri`	-	Seq server URL

Log Level Configuration

Configure log levels via the standard Serilog configuration:

{
  "Serilog": {
    "MinimumLevel": {
      "Default": "Information",
      "Override": {
        "Microsoft.AspNetCore": "Information",
        "System": "Warning",
        "Microsoft.AspNetCore.Mvc": "Warning",
        "Microsoft.AspNetCore.Cors": "Warning",
        "Microsoft.AspNetCore.Routing": "Warning",
        "Microsoft.AspNetCore.Hosting.Diagnostics": "Warning",
        "Microsoft.EntityFrameworkCore.Database.Command": "Warning",
        "Microsoft.EntityFrameworkCore.Update": "Warning",
        "Microsoft.AspNetCore.Authentication.JwtBearer.JwtBearerHandler": "Warning"
      }
    }
  }
}

Level	Use For
`Verbose`	Detailed debugging (very noisy)
`Debug`	Development diagnostics
`Information`	General operational events
`Warning`	Unexpected but handled events
`Error`	Failures requiring attention
`Fatal`	Critical failures

Log Enrichment

All log entries are automatically enriched with:

Property	Description
`AppName`	Application identifier (`milvaion-api`)
`Environment`	Current deployment environment (`MILVA_ENV` environment variable)

Log Correlation

Use CorrelationId to trace a job across services. In Seq:

CorrelationId = "corr-789"

OpenTelemetry Integration

Milvaion includes built-in OpenTelemetry support for metrics and distributed tracing. Metrics are exposed via a Prometheus-compatible HTTP endpoint.

Configuration

Enable and configure OpenTelemetry in appsettings.json:

{
  "MilvaionConfig": {
    "OpenTelemetry": {
      "Enabled": true,
      "ExportPath": "/api/metrics",
      "Service": "milvaion-api",
      "Environment": "production",
      "Job": "api",
      "Instance": "milvaion-prod-01"
    }
  }
}

Setting	Default	Description
`Enabled`	`false`	Enable/disable OpenTelemetry observability
`ExportPath`	`/api/metrics`	Prometheus scraping endpoint path
`Service`	`milvaion-api`	Service name for resource identification
`Environment`	`MILVA_ENV` env var	Environment label (e.g., `production`, `staging`)
`Job`	`api`	Job label for Prometheus
`Instance`	Machine name	Instance identifier for multi-instance deployments

Accessing Metrics

Prometheus metrics are exposed at the configured ExportPath:

curl http://localhost:5000/api/metrics

This endpoint returns metrics in Prometheus text format, ready for scraping.

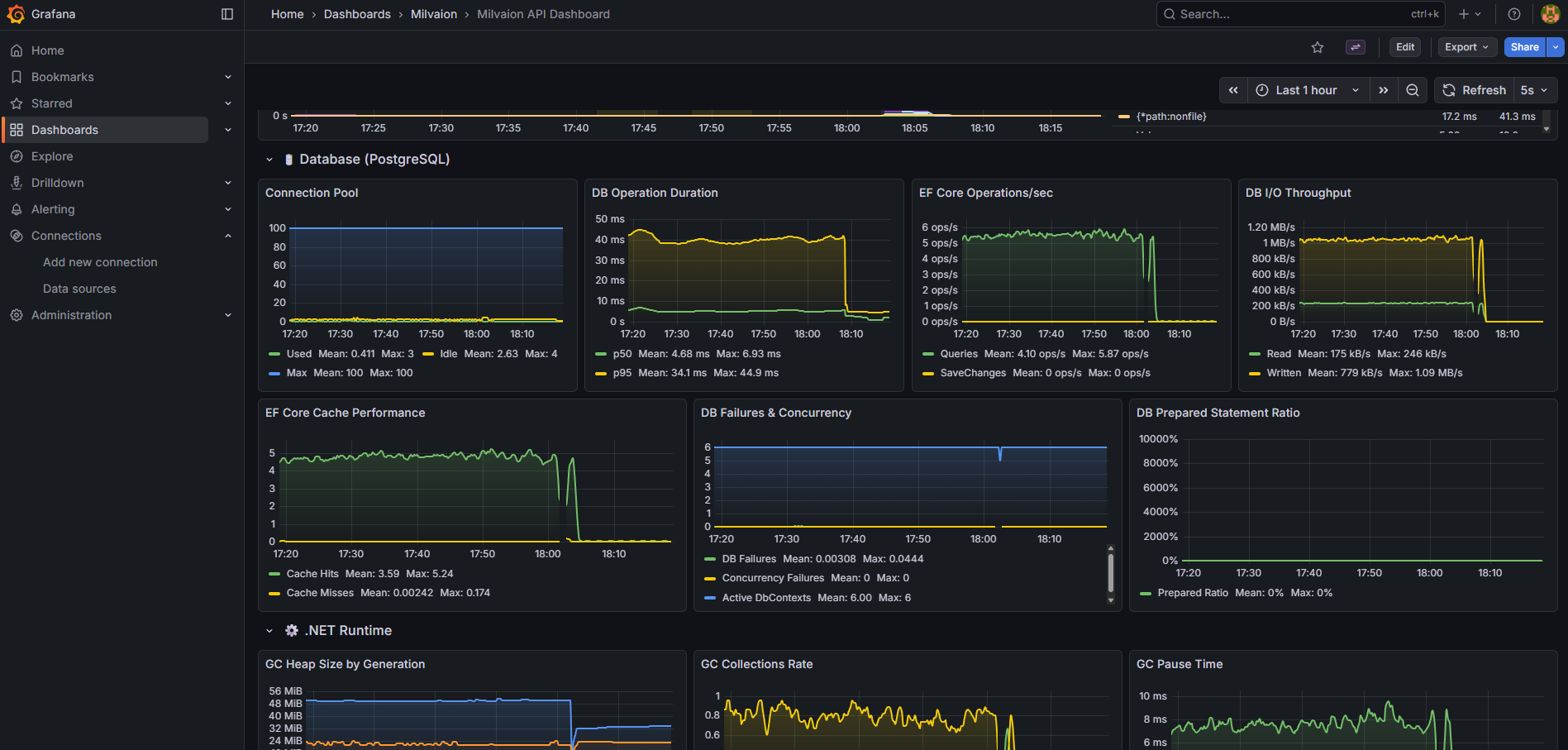

Collected Metrics

The following metric sources are automatically instrumented:

Source	Description
ASP.NET Core	HTTP request duration, status codes, active requests
HTTP Client	Outbound HTTP request metrics
Process	CPU, memory, GC, thread pool metrics
Npgsql (PostgreSQL)	Database query metrics
Entity Framework Core	ORM-level database metrics
System.Net.Http	HTTP client diagnostics
System.Net.NameResolution	DNS resolution metrics
System.Threading	Thread pool and synchronization metrics
System.Runtime	.NET runtime metrics

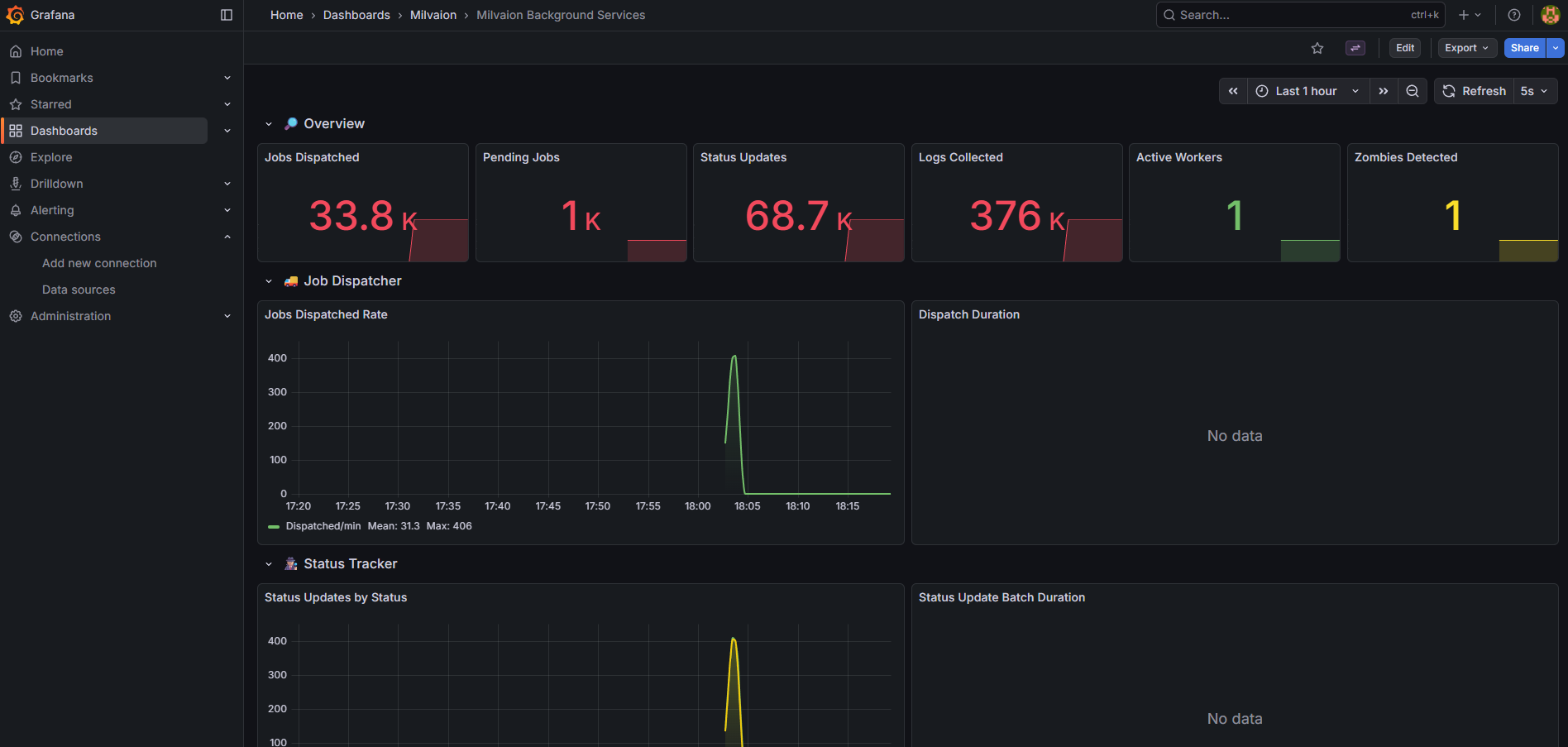

Background Service Metrics

Milvaion exposes custom metrics for all background services via the Milvaion.BackgroundServices meter:

Job Dispatcher:

Metric	Type	Description
`milvaion_dispatcher_jobs_dispatched`	Counter	Total jobs dispatched to workers
`milvaion_dispatcher_dispatch_failures`	Counter	Total dispatch failures
`milvaion_dispatcher_dispatch_duration`	Histogram	Duration of dispatch operations (ms)
`milvaion_dispatcher_pending_jobs`	Gauge	Jobs pending dispatch

Status Tracker:

Metric	Type	Description
`milvaion_status_tracker_updates_processed`	Counter	Total status updates processed
`milvaion_status_tracker_update_failures`	Counter	Total status update failures
`milvaion_status_tracker_batch_duration`	Histogram	Batch processing duration (ms)
`milvaion_status_tracker_updates_by_status`	Counter	Updates by final status (labels: `status`)
`milvaion_status_tracker_batch_size`	Gauge	Current batch size

Log Collector:

Metric	Type	Description
`milvaion_log_collector_logs_collected`	Counter	Total worker logs collected
`milvaion_log_collector_collection_failures`	Counter	Total collection failures
`milvaion_log_collector_batch_duration`	Histogram	Log batch processing duration (ms)
`milvaion_log_collector_batch_size`	Gauge	Current log batch size

Worker Discovery:

Metric	Type	Description
`milvaion_worker_discovery_registrations`	Counter	Total worker registrations
`milvaion_worker_discovery_heartbeats`	Counter	Total heartbeats received
`milvaion_worker_discovery_heartbeat_failures`	Counter	Heartbeat processing failures
`milvaion_worker_discovery_heartbeat_duration`	Histogram	Heartbeat batch processing duration (ms)
`milvaion_worker_discovery_active_workers`	Gauge	Currently active workers

Zombie Detector:

Metric	Type	Description
`milvaion_zombie_detector_detected`	Counter	Zombie occurrences detected
`milvaion_zombie_detector_recovered`	Counter	Zombie occurrences recovered
`milvaion_zombie_detector_detection_duration`	Histogram	Detection scan duration (ms)

Failed Occurrence Handler:

Metric	Type	Description
`milvaion_failed_handler_processed`	Counter	Failed occurrences processed
`milvaion_failed_handler_retried`	Counter	Failed occurrences retried
`milvaion_failed_handler_process_duration`	Histogram	Processing duration (ms)

General Service Metrics:

Metric	Type	Description
`milvaion_background_service_iterations`	Counter	Service loop iterations (labels: `service`)
`milvaion_background_service_errors`	Counter	Service errors (labels: `service`, `error_type`)
`milvaion_background_service_iteration_duration`	Histogram	Iteration duration (labels: `service`)

Distributed Tracing

Tracing is automatically configured for:

ASP.NET Core requests (with exception recording)
HTTP client calls
PostgreSQL queries (via Npgsql)
Entity Framework Core operations
Milvaion internal activity sources

Trace data includes resource attributes for correlation:

Attribute	Description
`service`	Service name
`environment`	Deployment environment
`job`	Job identifier
`instance`	Instance identifier

Prometheus Scrape Configuration

Add Milvaion to your Prometheus configuration:

scrape_configs:
  - job_name: 'milvaion-api'
    scrape_interval: 15s
    static_configs:
      - targets: ['milvaion-api:5000']
    metrics_path: '/api/metrics'

Alerting

Critical Alerts

Condition	Severity	Action
API health check failing	Critical	Page on-call
All workers offline	Critical	Page on-call
DLQ depth > 100	High	Investigate failures
Success rate < 95%	High	Check failing jobs
Queue depth growing	Medium	Scale workers
Zombie jobs detected	Medium	Check worker health

Prometheus Alert Rules

groups:
  - name: milvaion
    rules:
      - alert: MilvaionApiDown
        expr: up{job="milvaion-api"} == 0
        for: 1m
        labels:
          severity: critical
        annotations:
          summary: "Milvaion API is down"

      - alert: MilvaionNoActiveWorkers
        expr: count(milvaion_worker_active) == 0
        for: 2m
        labels:
          severity: critical
        annotations:
          summary: "No active Milvaion workers"

      - alert: MilvaionHighFailureRate
        expr: |
          rate(milvaion_jobs_failed[5m]) /
          rate(milvaion_jobs_completed[5m]) > 0.1
        for: 5m
        labels:
          severity: high
        annotations:
          summary: "Job failure rate > 10%"

      - alert: MilvaionDLQGrowing
        expr: milvaion_dlq_depth > 50
        for: 10m
        labels:
          severity: high
        annotations:
          summary: "Dead letter queue has {{ $value }} messages"

Grafana Dashboards

Milvaion includes two pre-configured Grafana dashboards located in build/grafana/provisioning/dashboards/json/:

1. Milvaion API Dashboard (`milvaion-api.json`)

General API and infrastructure monitoring:

Section	Panels
Overview	CPU, Memory, Active Requests, Kestrel Connections, SignalR, Thread Pool
HTTP Requests	Request Rate, Response Times (p50/p95/p99), Status Codes, Error Rate
Database	Query Duration, Active Connections, Commands/sec, Connection Pool
Memory	GC Collections, Heap Size, LOH Size, Allocation Rate

2. Background Services Dashboard (`milvaion-background-services.json`)

Dedicated monitoring for all background services:

Section	Panels
Overview	Jobs Dispatched, Pending Jobs, Status Updates, Logs Collected, Active Workers, Zombies Detected
Job Dispatcher	Dispatch Rate (jobs/min), Dispatch Duration (p50/p95/p99), Failures
Status Tracker	Updates by Status, Batch Duration, Failures
Log Collector	Collection Rate, Batch Duration, Queue Size
Worker Discovery	Registrations/min, Heartbeats/min, Active Workers, Heartbeat Duration
Zombie & Failed Handlers	Zombies Detected/Recovered, Failed Occurrences Processed/Retried
Service Health	Errors by Service, Iteration Duration by Service

Useful PromQL Queries

# Jobs dispatched per minute
rate(milvaion_dispatcher_jobs_dispatched_total{job="milvaion-api"}[1m]) * 60

# Dispatch failure rate
rate(milvaion_dispatcher_dispatch_failures_total[5m]) / rate(milvaion_dispatcher_jobs_dispatched_total[5m])

# Status updates by status type
sum by (status) (rate(milvaion_status_tracker_updates_by_status_total[5m]))

# Average dispatch duration (p95)
histogram_quantile(0.95, sum(rate(milvaion_dispatcher_dispatch_duration_bucket[5m])) by (le))

# Active workers count
milvaion_worker_discovery_active_workers

# Zombie detection rate (per 5 minutes)
increase(milvaion_zombie_detector_detected_total[5m])

# Service error rate by service
sum by (service) (rate(milvaion_background_service_errors_total[5m]))

Access Dashboards

Grafana UI: http://localhost:3000 (default: admin/admin)
Milvaion API Dashboard: Pre-loaded as "Milvaion API Dashboard"
Background Services Dashboard: Pre-loaded as "Milvaion Background Services"

Milvaion Metrics

RabbitMQ Monitoring

Management UI

Access at http://localhost:15672:

Overview: Message rates, connections
Queues: Depth, consumers, message rates
Exchanges: Routing statistics

Key Metrics

Metric	Healthy Range	Action if Exceeded
Queue depth	< 1000	Scale workers
Unacked messages	< 100	Check worker health
Memory usage	< 80%	Add RAM or scale
Disk alarm	Not triggered	Add disk space

CLI Monitoring

# Queue status
docker exec milvaion-rabbitmq rabbitmqctl list_queues name messages consumers

# Connection count
docker exec milvaion-rabbitmq rabbitmqctl list_connections

Redis Monitoring

Key Metrics

Metric	Command	Healthy Range
Memory used	`INFO memory`	< 80% maxmemory
Connected clients	`INFO clients`	< 10000
Commands/sec	`INFO stats`	Varies
Keyspace	`INFO keyspace`	Growing slowly

CLI Commands

# Memory info
docker exec milvaion-redis redis-cli INFO memory

# Slow queries
docker exec milvaion-redis redis-cli SLOWLOG GET 10

# Active keys
docker exec milvaion-redis redis-cli DBSIZE

Database Monitoring

PostgreSQL Key Metrics

Metric	Query	Threshold
Active connections	`SELECT count(*) FROM pg_stat_activity`	< max_connections
Long-running queries	`SELECT * FROM pg_stat_activity WHERE state = 'active' AND query_start < now() - interval '5 minutes'`	0
Table bloat	`SELECT pg_size_pretty(pg_total_relation_size('JobOccurrences'))`	Monitor growth

Useful Queries

-- Occurrence count by status (last 24h)
SELECT "Status", COUNT(*)
FROM "JobOccurrences"
WHERE "CreatedAt" > NOW() - INTERVAL '24 hours'
GROUP BY "Status";

-- Slowest jobs (avg duration)
SELECT j."JobType", AVG(o."DurationMs") as avg_ms, COUNT(*) as count
FROM "JobOccurrences" o
JOIN "ScheduledJobs" j ON o."JobId" = j."Id"
WHERE o."Status" = 2 -- Completed
GROUP BY j."JobType"
ORDER BY avg_ms DESC
LIMIT 10;

-- Failed jobs by type (last 7 days)
SELECT j."JobType", COUNT(*) as failures
FROM "JobOccurrences" o
JOIN "ScheduledJobs" j ON o."JobId" = j."Id"
WHERE o."Status" = 3 -- Failed
AND o."CreatedAt" > NOW() - INTERVAL '7 days'
GROUP BY j."JobType"
ORDER BY failures DESC;

Troubleshooting

Jobs Not Executing

Check dispatcher is running: docker logs milvaion-api | grep -i dispatch
Check workers are registered: curl http://localhost:5000/api/v1/workers
Check RabbitMQ queues: http://localhost:15672

Check Redis scheduled jobs:

docker exec milvaion-redis redis-cli ZRANGE "Milvaion:JobScheduler:scheduled_jobs" 0 -1 WITHSCORES

High Memory Usage

Check for large job payloads
Check occurrence log sizes
Enable database cleanup jobs
Check for memory leaks in custom jobs

Slow Dashboard

Check PostgreSQL query performance
Add indexes if missing
Increase API connection pool
Enable response caching

What's Next?

Database Maintenance - Cleanup and retention policies

Security – Security considerations
MilvaionUI – UI screenshoots

Health Checks​

API Health Endpoints​

Liveness Check​

Readiness Check​

Kubernetes Probes​

Worker Health​

Configuration​

Option 1: Console Worker (File-Based)​

Option 2: API Worker (HTTP Endpoints)​

Health Check Behavior​

Dashboard Metrics​

Built-in Statistics​

Worker Status​

Logging​

Default Behavior​

Seq Integration (Optional)​

Log Level Configuration​

Log Enrichment​

Log Correlation​

OpenTelemetry Integration​

Configuration​

Accessing Metrics​

Collected Metrics​

Background Service Metrics​

Distributed Tracing​

Prometheus Scrape Configuration​

Alerting​

Critical Alerts​

Prometheus Alert Rules​

Grafana Dashboards​

1. Milvaion API Dashboard (milvaion-api.json)​

2. Background Services Dashboard (milvaion-background-services.json)​

Useful PromQL Queries​

Access Dashboards​

RabbitMQ Monitoring​

Management UI​

Key Metrics​

CLI Monitoring​

Redis Monitoring​

Key Metrics​

CLI Commands​

Database Monitoring​

PostgreSQL Key Metrics​

Useful Queries​

Troubleshooting​

Jobs Not Executing​

High Memory Usage​

Slow Dashboard​

What's Next?​

Health Checks

API Health Endpoints

Liveness Check

Readiness Check

Kubernetes Probes

Worker Health

Configuration

Option 1: Console Worker (File-Based)

Option 2: API Worker (HTTP Endpoints)

Health Check Behavior

Dashboard Metrics

Built-in Statistics

Worker Status

Logging

Default Behavior

Seq Integration (Optional)

Log Level Configuration

Log Enrichment

Log Correlation

OpenTelemetry Integration

Configuration

Accessing Metrics

Collected Metrics

Background Service Metrics

Distributed Tracing

Prometheus Scrape Configuration

Alerting

Critical Alerts

Prometheus Alert Rules

Grafana Dashboards

1. Milvaion API Dashboard (`milvaion-api.json`)

2. Background Services Dashboard (`milvaion-background-services.json`)

Useful PromQL Queries

Access Dashboards

RabbitMQ Monitoring

Management UI

Key Metrics

CLI Monitoring

Redis Monitoring

Key Metrics

CLI Commands

Database Monitoring

PostgreSQL Key Metrics

Useful Queries

Troubleshooting

Jobs Not Executing

High Memory Usage

Slow Dashboard

What's Next?
